MARS Azure 1/15 – 1/25 HP 3.3″ Commercial Refrigeration ECM
-
Description
MARS Azure 1/15 – 1/25 HP 3.3″ Commercial Refrigeration ECM

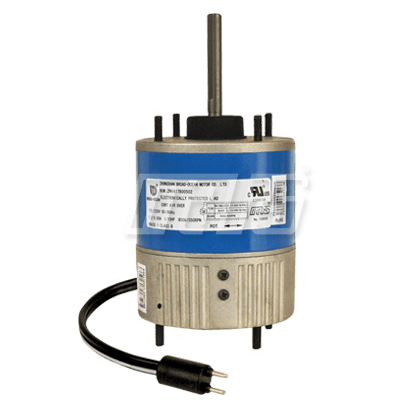

Azure® is an electronically controlled 3.3” motor (ECM) that replaces all 1/15 – 1/25 HP, 115/230V, and 1550/600 RPM commercial refrigeration evaporator fan motors for walk in cooler/freezer applications. For 1550 RPM, this motor connects easily to the fan controller via a standard Lyall plug. For 2-speed applications, the Lyall plug can be removed and the motor can be wired directly to a separate 2-speed control module using the included second speed tap for 600 RPM. Motor rotation is set using a simple jumper wire. Azure® is rated for 115V or 230V with nothing to set; plug it in to either voltage and it adapts to the correct voltage.
Specifications:
- Operating temperature range: −40 to 55°C (−40 to 131°F)
- Multi horsepower, self-adjusting from 1/15 to 1/25HP
- Reversible rotation
- Auto voltage select (115/230V)
- High efficiency ECM technology
- No capacitor required
- UL Recognized
Motor Type ECM Enclosure TEAO H.P. (Max.) 1/15 – 1/25 Voltage 115/230 Multi-Rated H.P. 1/15 – 1/25 Speeds 2 Hz 50/60 Rotation REV RPM Range 1550/800 NEMA Frame Size 3.3 Phase Single Standards UL Listed FLA 1.3/0.65 Notes Horizontal or Shaft down mounting Mount Stud Bearing Ball Shaft Length Inches 2.5 Shaft Dia Inches 5/16 Thermal Protection Auto Ambient Deg C −40 to 55°C (−40 to 131°F) Ins. Class Class B Capacitor Included No -
Additional information
Manufacturer MARS Product Category ECM, Electric Motors Models 10850 Part Number 10850 RPM 1550 Voltage 115/230 Horsepower 1/15 - 1/25 -
