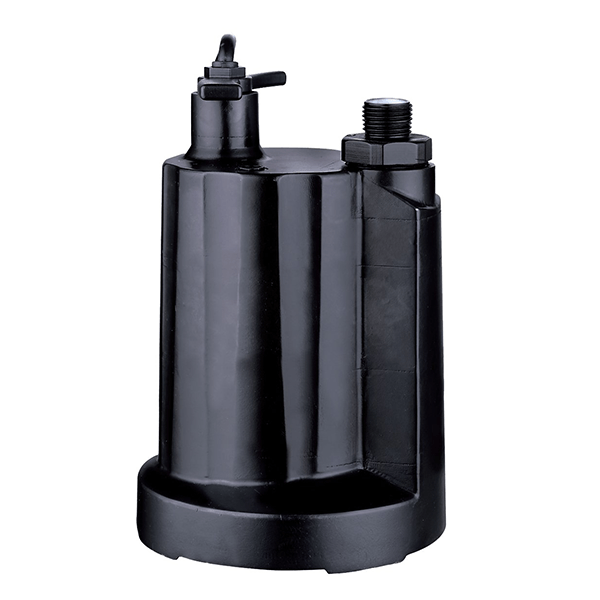

Leo UTP033-2 1/3 HP Submersible Utility Pump
-
Description
Leo UTP033-2 Submersible Utility Pump
Features and Benefits
- Continuous duty and easy access handle for portability.
- Corrosion-resistant, reinforced thermoplastic construction
- Bottom suction design filters debris and removes water down to 1/4″ from surface.
- Built-in automatic thermal overload protector motor.
- 3/4″ NPT discharge, 1 1/4″ adapter included.
- Top discharge design.
- 10 ft power cord.
Specifications
- Inlet: Diameter 14.4 inches
- Discharge: NH3/4
- Pump Cover: PA66-GF25
- Motor Housing: ZL104+DMC
- Pump Body: PP-GF30
- Switch Type: /
- Impeller: PPO-GF30
- Seal Design: Framework oil seal
- Seal Material: NBR
- Oil Filled Motor: Yes
- Power Cord: SJTW 18AWG 10ft
- Net Weight: 8.2
- Gross Weight:9.5
- Package Size: 7.5×6.5×11
- Expected Life Cycle: 4000 Hours
- Motor Wires: Copper
- Self-Priming: /
- Certification: UL
Model HP Voltage AMP Discharge NPT(in) Max. Head Ft GPH of water @ Total Ft. of Head 5 ft 10 ft 15 ft 20 ft 25 ft UTP033-2 .33 (1/3) 115 4 1-1/4 33.5 2160 1950 1700 1450 1100 -
Additional information
Product Category Submersible Pumps, Utility Pump Series UTP033-2 Manufacturer Leo Models - Technical Data
- UTP033-2
Horsepower 1/3 Voltage 115 Part Number UTP033-2 -
Technical Data
