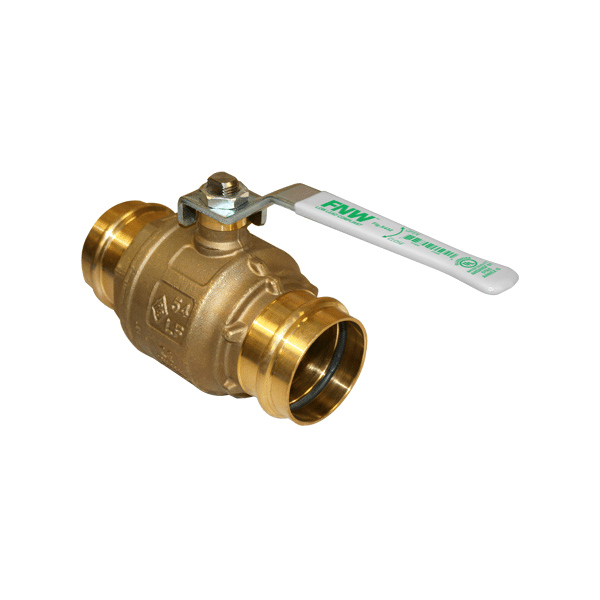

FNW X432 1/2 in. Brass Body Ball Valve with Press Ends

Low-lead compliant 2-piece full port water service valve with press ends

The FNW figure X432 press valve for water service is an economical alternative to the more robust figure X430. The valve allows quick installation on copper pipelines meeting ASTM B88 standards. The structure of the valve, made in dezincification-resistant brass, guarantees excellent corrosion resistance particularly in the connection areas of the pipeline. Drip fit O-rings ensure that an end connection will drip, indicating an end was not pressed.

Features

• Sizes: 1/2″–4″ (2-1/2″–4″ are XLC end connections‡)
• Full port*
• Press ends
• Drip fit O-rings (1/2″–2″)
• No soldered-in end pieces
• Blowout-proof stem
• Dual O-ring non-adjustable packing
• Forged brass body and end cap
• 100% electronically tested in open and closed position at 80 PSI

*4″ Valve is standard port

NOT FOR USE AT OR BELOW GROUND LEVEL
