Description

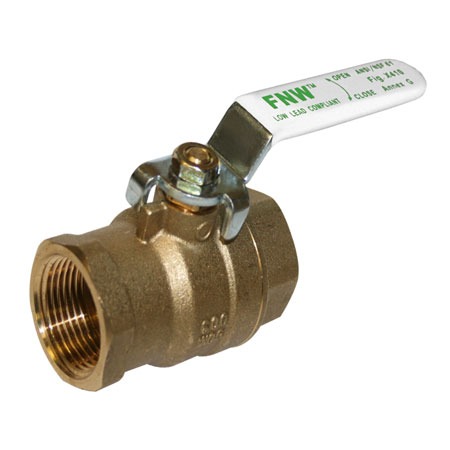

FNW X410C Brass Body Ball Valve

LOW LEAD COMPLIANT 2 PC FULL PORT* 600 WOG

Features

• 600 WOG
• Full Port*
• NSF61 & NSF 372 certified
• CSA approved (1/2″ to 2″ only)
• Meets MSS SP-110 standards
• Blow-out proof stem
• Adjustable packing
• Threaded NPT ends per ANSI B 1.20.1
• Optional lock lever kit
• Optional stem extension kit
• Optional tee handle kit
• Optional oval handle kit
• Optional memory stop kit

*4″ Valve is standard port

NOT FOR USE AT OR BELOW GROUND LEVEL

Gas Approvals

• CSA Class 3371-08, ANSI Z21.15/CSA9.1, 1/2 PSIG, -40°F – 125°F
• CSA Class 3371-10, CGA 3.16, 125 PSIG, -40°F – 149°F
• CSA Class 3371-12, CGA CR91-002, 5 PSIG, -40°F – 125°F
• CSA Class 3371-88, ANSI Z21.15/CSA9.1, 1/2 PSIG, -40°F – 125°F
• CSA Class 3371-92, ASME B16.44, 5 PSIG, -40°F – 125°F
• CSA Class 3371-94, ASME B16.33, 125 PSIG, -20°F – 150°F
• UL Class YRBX, ANSI/UL-842, 600 PSIG, -20°F – 125°F
• UL Class YSDT, ANSI/UL-125, 250 PSIG, -40°F – 130°F

Figure Number Matrix
