Float Switch Connectors
Revolutionary Float Switch Connection System Saves Installers Time and Money
Manifold/float connection system designed for easy installation of float switches

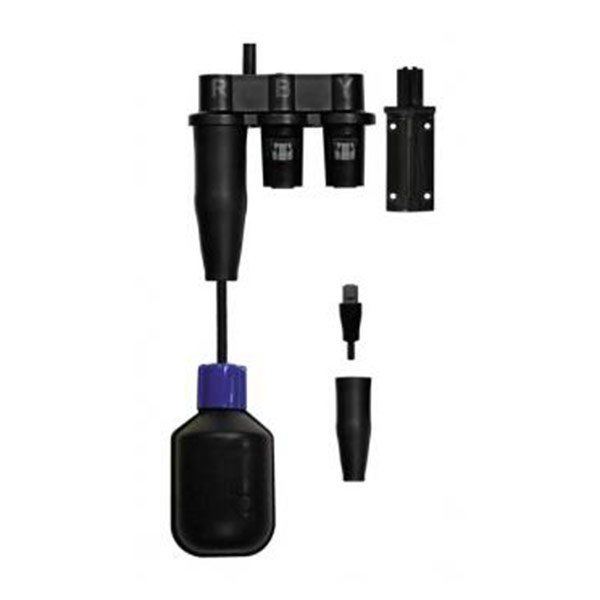

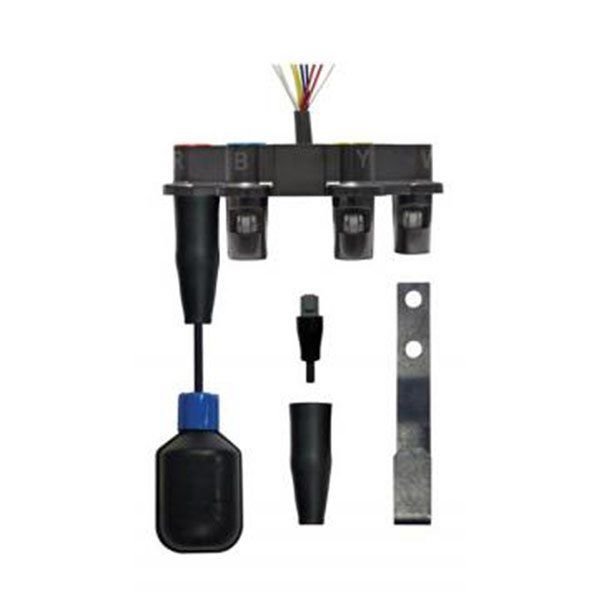

The EZconnex® 3-port and 4-port Float Switch Connection Systems include an electrical wiring manifold with mounting bracket and hardware. The manifold features three or four quick release float switch connection ports. The 3-port model has a single 6-conductor direct burial cable has Red-Blue-Yellow wire pairs that match the R-B-Y imprint on the manifold housing for easy field wiring while the 4-port has Red-Blue-Yellow-White wire pairs that match the R-B-Y-W imprint. The systems are both rated for short term water submersion. The mounting bracket is designed to allow quick access to the manifold and float switches for easy maintenance.
EZconnex® float switches feature an internal switching mechanism with sealed gold cross-point contacts for reliable low current operation. A range of wide-angle or narrow-angle float switches feature a quick release connection that simply plugs into the manifold port(s) for easy installation.
The EZconnex® 3-port system can be used with 1, 2, or 3 float switches and the EZconnex® 4-port system can be used with 1, 2, 3 or 4 float switches. . Each float switch includes a protective rubber boot that provides a dual seal design for an extra layer of protection to keep connections clean and dry. Sealing plugs are available for unused manifold port(s). NOTE: Do not install with open port(s).
Pump Type Sump and Sewage Accessories, Float Switch, Float Switch Connector Part Number 1046918, 1046919, 1046920, 1046921, 1046922, 1046923, 1046924, 1046925, 1047611, 1047612, 1047613, 1050721, 1050840, 1050841, 1050842, 1050843
