Description

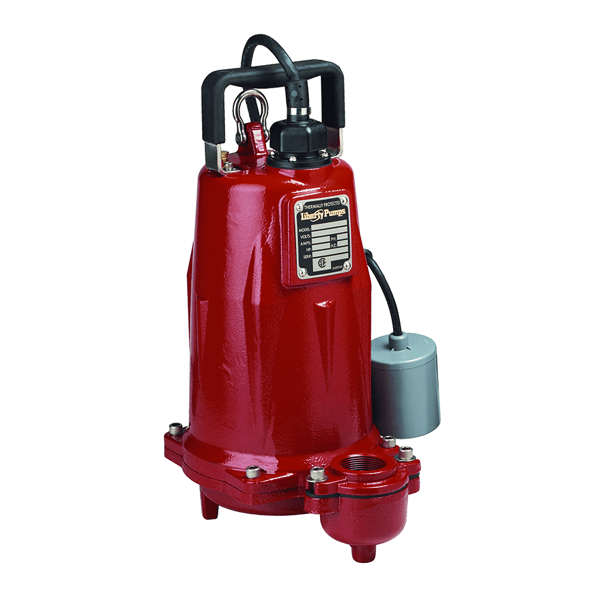

FL100 Series

• 1 hp.
• 1 1/2″ or 2″ Discharge
• 3/4″ Solids Handling

The FL100 series by Liberty covers a wide-range of high-head pump applications.  Designed with Liberty’s unique one-piece cast iron body and quick-disconnect cords in 25′ standard length.

The FL100 series by Liberty is a 1HP effluent pump designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications.  The pump features a dual-sized threaded discharge of 1-1/2″ and 2″ for connection to either size pipe. Built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners, the FL100-series will provide years of reliable performance.

Additional information

Technical Data

• • FL100 Series Technical Data

Parts

• FL102A (B47)
• FL102A (B55)
• FL102A-2 (B72)
• FL102A-3 (B72)
• FL102M (B47)
• FL102M (B55)
• FL102M-2 (B72)
• FL102M-3 (B72)
• FL103M (B47)
• FL103M-2 (B72)
• FL103M-3 (B72)
• FL103M-5 (B72)
• FL104M (B47)
• FL104M-2 (B72)
• FL104M-3 (B72)
• FL104M-5 (B72)
• FL105M (B10)
• FL105M-2 (B72)
• FL105M-3 (B72)
• FL105M-5 (B72)

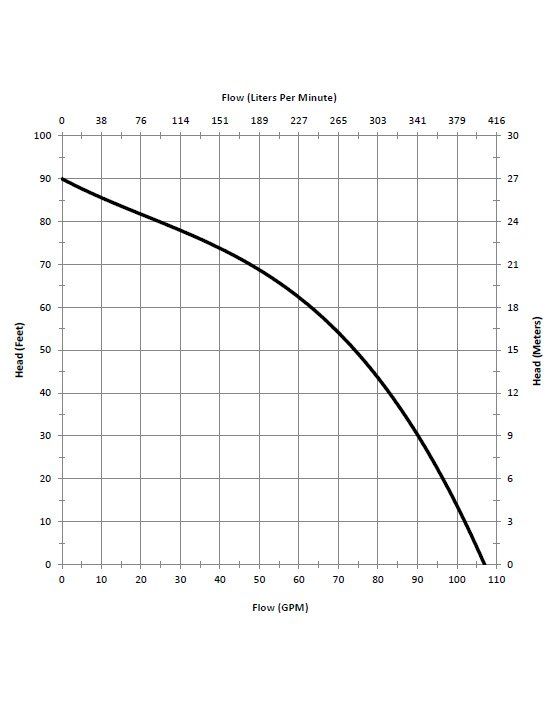

Performance Data
