Waterway

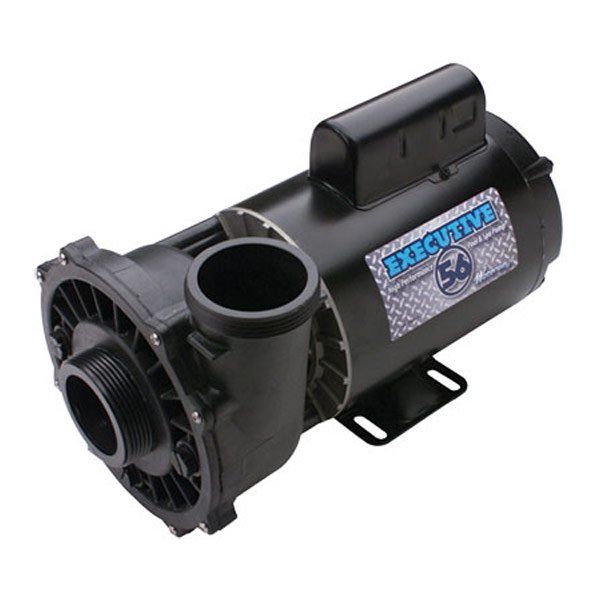

Executive 56 Series

Please contact us for a quote



  • Description

    Features

    • Executive wet end designed specifically for 56-frame motors
    • Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
    • Two speed motors have four sets of insulated windings for increased efficiency
    • 56-frame motor for added strength, cooler operating temperature and longer motor life
    • Large 2 ½” intake for improved flow performance and reduced noise
    • Large 6 ½” diameter wet end for higher head pressure
    • Split capacitor, (start and run) for less energy consumption
    • Thermally protected to extend life expectancy of motor
    • Highly versatile wet end can be rotated every 90°
    • Viton seals
  • Additional information

    Manufacturer Waterway
    Pump Type Hot Tub Pumps, Pool, Spa and Hot Tub Pumps
    Series 56-Frame, Executive Series
    Models 3710821-13, 3710821-1D, 3711221-13, 3711221-1D, 3711621-13, 3711621-1D, 3712021-13, 3712021-1D, 3720821-13, 3720821-1D, 3721221-13, 3721221-1D, 3721621-13, 3721621-1D, 3722021-13, 3722021-1D
  • Technical Data

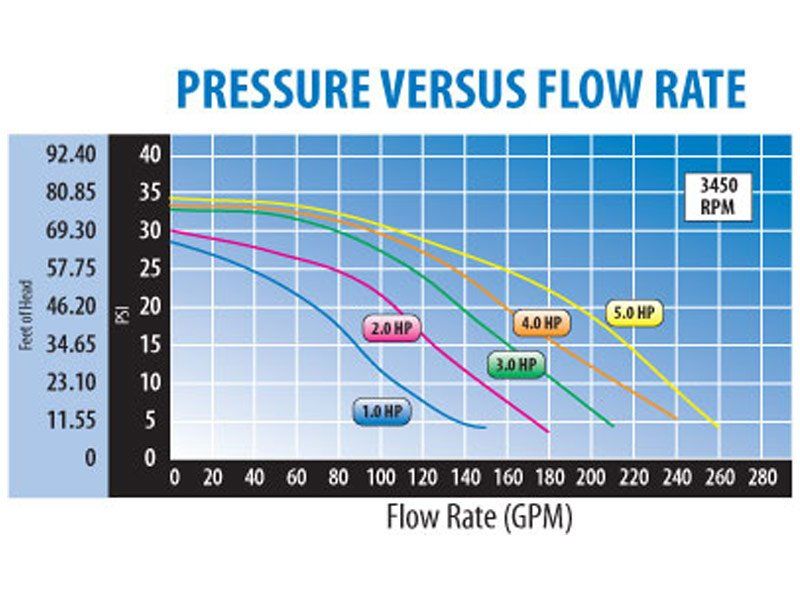

  • Performance Curves
