Description

Specifications

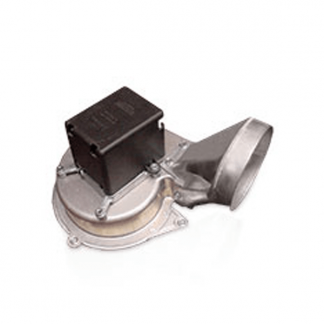

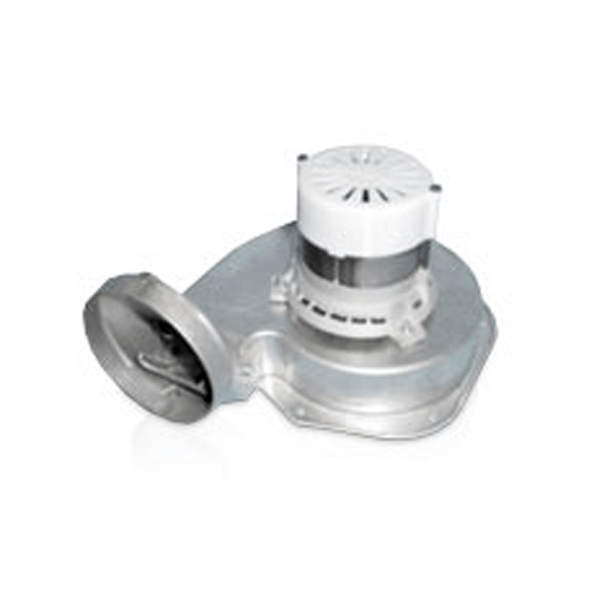

• 3.3 ECM motor with internal electronics
• Aluminized steel housing and impeller
• Available in standard housing and new small 80 housing size
• Patented design

Features

• Clinch Seam housing
• Internal electronics
• Cast motor standoff with heat slinger fan
• Available with or without 4” round offset exhaust
• Industry standard mounting pattern available
• Stainless steel motor shaft
• Available with or without static tap

Benefits

• Reduced variance in operating speeds
• Reduced variance in static tap performance
• Remove RPM variance due to speed voltage Variations
• Identical operating speeds on 50 hz & 60 hz
• One SKU can be programmed on customer’s line for full line of 80+ single-stage or 2-stage furnaces
• Overall length 1/2” shorter than standard induction motors

Additional information

Technical Data

• • ECM Technology for 80+ Furnace Inducers
