Viking Pump
4624B Series Abrasive Liquid
Viking Pump Abrasive Liquid Gear Pump: Abrasive Liquid Series internal gear pumps provide a cost-effective solution for handling abrasive liquids with minimal wear. They share key components with the B Series pumps, but include the pinned-seat abrasive liquid seal with flush line standard, along with hard parts in critical wear areas.
-
Description

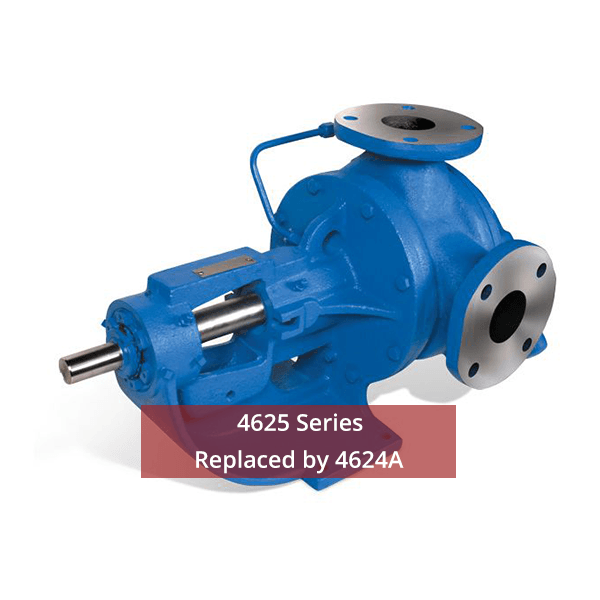

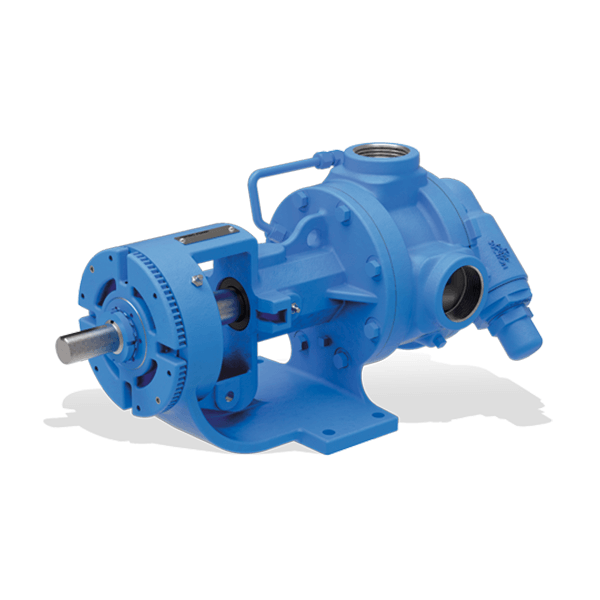

Viking Pump 4624B Series Abrasive Liquid Internal Gear Pump, replaces Series 4625.
- Extended service life provided by:
- Tungsten carbide components in critical wear areas of pump.
- Other hardened component options available.
- Silicon carbide mechanical seal faces.
- Positive seal flush to keep fresh supply of liquid at seal faces.
- Behind the rotor seal placement eliminates abrasive wear on shaft bushing.
- Pin drive mechanical seal increases viscosity range.
- For abrasive liquids like paints, inks and waste oil.
- Extended service life provided by:
-
Additional information
Product Category Gear Pumps Series 4624B Manufacturer Viking Pump Models ,- Technical Data
- 4625
,- Technical Data
- F4624B
,- Technical Data
- FH4624B
,- Technical Data
- H4624B
,- Technical Data
- HL4624B
,- Technical Data
- K4624B
,- Technical Data
- KK4624B
,- Technical Data
- L4624B
,- Technical Data
- LL4624B
,- Technical Data
- LQ4624B
,- Technical Data
- LS4624B
,- Technical Data
- Q4624B
- Technical Data
- QS4624B
Size K, KK, L, LQ, LL, LS, Q, F, QS, FH, H, HL -
Technical Data
-
Legacy
Technical Data
