Berkeley

6TSP Series

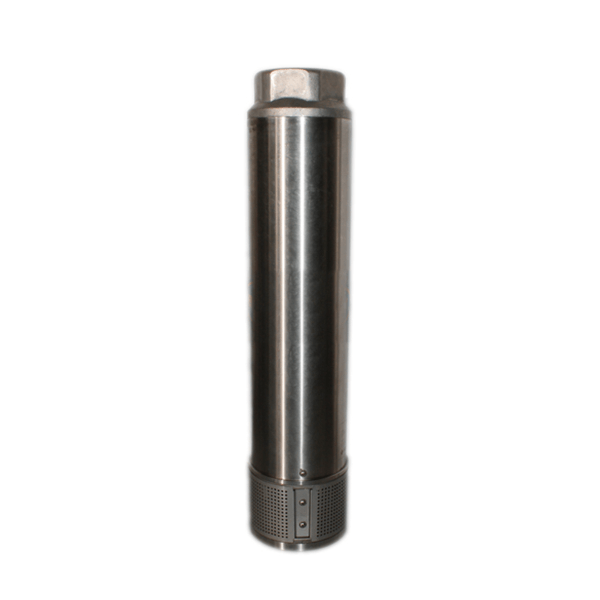

Pentair Berkeley 6TSP Series Turbine Pumps: The 6TSP series pumps feature abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions.

Please contact us for a quote



  • Description

    The 6TSP series pumps feature abrasion and corrosion resistant materials for maximum performance and longevity under the toughest operating conditions.
    Components are 100% lead-free, and meet all U.S. federal guidelines for safe drinking water.

    Key Features

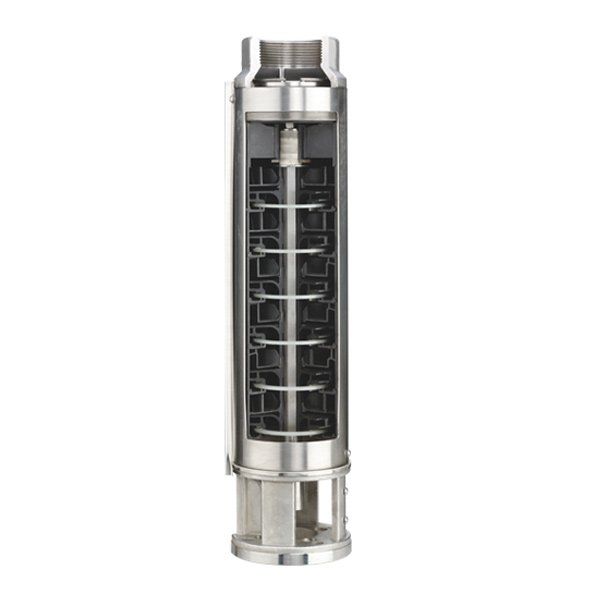

    • Discharge – investment cast, 3” FNPT Features 6 extra wide wrench flats for a secure grip when tightening to the drop pipe.
    • Standard Check valve – The poppet-style check valve helps protect the pump against backflow. The check valve can be easily removed if not required.
    • Shaft and bearing assembly – A ceramic upper bearing guide combined with a cutless rubber bearing protects the shaft from premature wear.
    • Impellers and diffusers – Smooth and efficient performance, and superior sand handling.
    • Wear rings – 304 Minimizes re-circulation for increased pump performance and longevity.
    • Pump sleeve – Provides superior corrosion resistance when the pump is installed in harsh environments.
    • Lead guard – Easy installation, and protects the motor leads across the full length of the pump.
    • Suction bracket – Machined for both 4” and 6” motor registers. Bolt kits included for either motor size where appropriate.
    • Suction screen – Form fitted, provides corrosion resistance, and prevents particulates larger than 0.10” from entering the pump.
    • Motor Coupling – Designed to effectively divert debris away from the spline engagement area to maximize durability.
  • Additional information

    Pump Type Turbine Pumps
    Series 6TSP
    Manufacturer Berkeley
