Franklin Electric

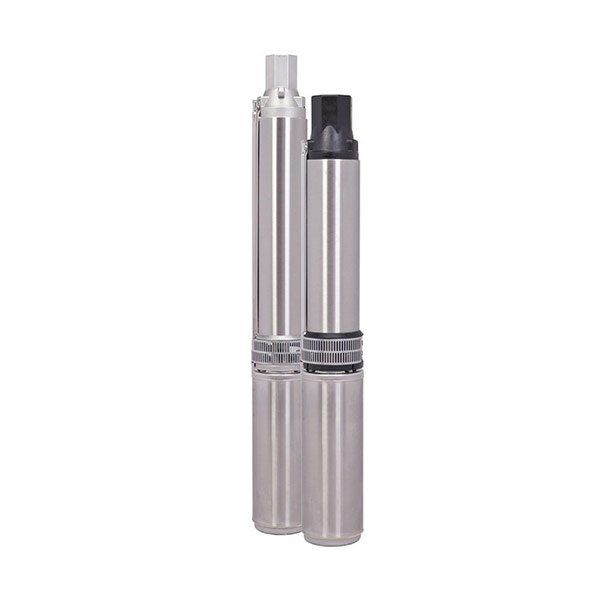

3200 Series

The 3200 Series submersible pumps are designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well.

Please contact us for a quote



  • Description

    The 3200 Series submersible pumps are designed so that all parts of the pump end, including the cable guard, fall within the diameter of Franklin Electric’s industry leading submersible 4-inch motor. This reduced diameter pump end makes it ideal for installations where the well is considered encrusted or tight in comparison to a standard 4-inch well. The 3200 Series also offers a hydraulic stage design optimized for greater water and pressure output when installed at deeper well depths. For details on how to become a registered dealer and receive a 5-year warranty, contact your local distributor.

    • Pump diameter is smaller than a standard 4-inch submersible for easier installation in reduced diameter 4-inch wells.
    • Hex rubber bearing and ceramic shaft sleeve allows sand and abrasives to pass through, virtually eliminating shaft wear and upper bearing failures.
    • Improved hydraulic performance for deeper set depths at all horsepower and flow ratings.
      • Floating stage design allows for maximum efficiency while minimizing the downthrust load that is transferred to the motor.
      • Modified PPO diffuser and disc with 300 Series stainless steel thrust and eye seal protection for durability and abrasion resistance
      • Acetal impeller provides high performance to increase pressure output while reducing system losses from friction.
    • Removable spring-loaded check valve.
    • Stainless steel pump intake screen and stainless steel cable guard.
    • Maximum water temperature: 120 °F / 49 °C.
    • Powered by corrosion-resistant Franklin Electric submersible 4-inch motor with lightning protection.
  • Additional information

    Manufacturer Franklin Electric
    Pump Type Well Pumps, Submersible Pumps
    Series 3200 Series

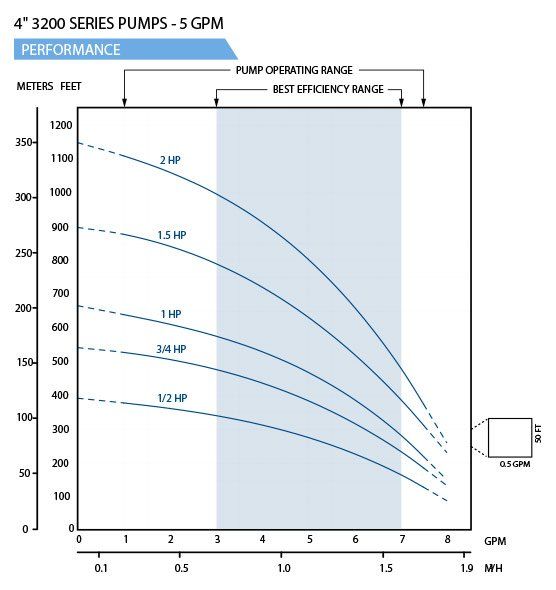

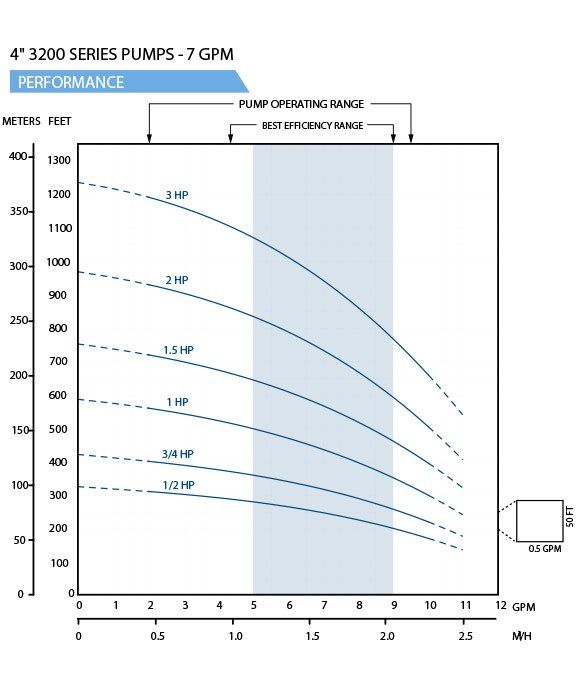

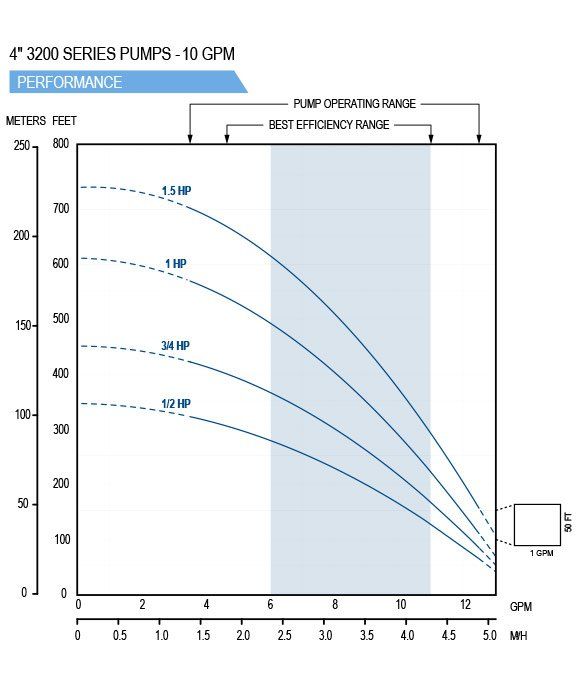

  • Performance Curves
