Little Giant

16S Series

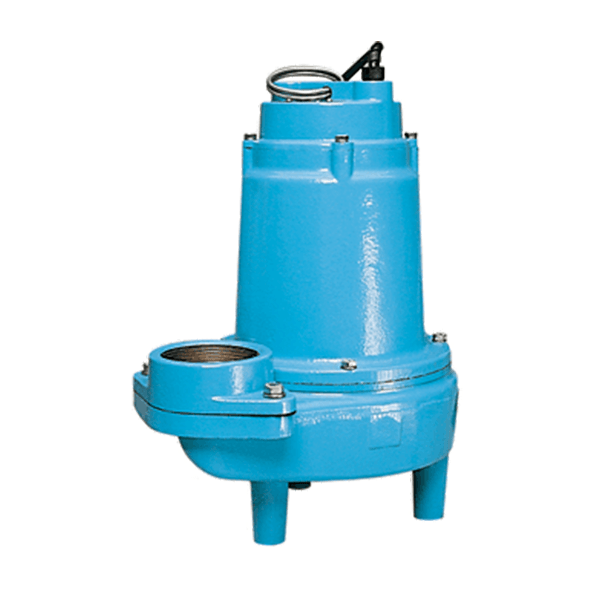

The 16S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

Please contact us for a quote



  • Description

    Little Giant 16S Series

    The 16S Series submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.

    For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.

    Features:

    • 1HP permanent split capacitor (PSC) motor with overload protection
    • Designed for continuous duty
    • 3″ FNPT (76.2 mm) discharge
    • Carbon/ceramic shaft seal
    • Two vane non-clog epoxy coated cast iron impeller
    • Upper and lower ball bearings
    • Handles solids up to 2″ (51 mm) diameter
    • cCSAus listed
    16S Series - Little Giant - Sewage Pump
    VoltsHzAmpsWattsPerformance (GPM @ Height in Feet)Shut-Off (ft)PSI
    FLAStart10 ft20 ft30 ft
    200-208606.8211500160100403515.1
    2086011182000160100403515.1
    230601119.21900160100403515.1
    200-208*606.317.71500160100403515.1
    380-46050/6039850160100403515.1
    575602.57.21550160100403515.1
    *Three-phase requires control panel
    Item No.ModelHPVoltsDischargeSwitch Type/OperationCordWeight
    51475016S-CIM1200-2083**Manual20 ft88 lbs
    6.1 m39.92 Kg
    51462516S-CIM1200-2081Manual20 ft88 lbs
    6.1 m39.92 Kg
    51462016S-CIM12301Manual20 ft88 lbs
    6.1 m39.92 Kg
    51472016S-CIM12303**Manual20 ft88 lbs
    6.1 m39.92 Kg
    51463016S-CIM12301Manual20 ft88 lbs
    6.1 m39.92 Kg
    51473016S-CIM1380-4603**Manual20 ft88 lbs
    6.1 m39.92 Kg
    51474016S-CIM15753**Manual20 ft88 lbs
    6.1 m39.92 Kg
    **Three-phase pumps must have a three-phase control panel for automatic or manual operation
  • Additional information

    Pump Type Sewage Pumps
    Series 16S
    Manufacturer Little Giant
    Models
  • Technical Data

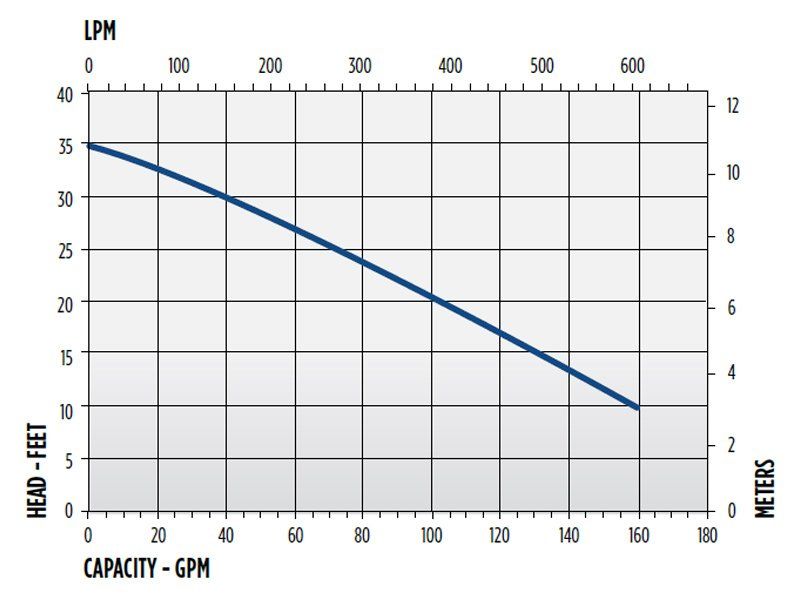

  • Performance Curves
